Why Woven Nylon Cloth Beats PVC/Vinyl for Harness & Equipment Protection

• Abrasion Resistance:​ The plain-weave nylon filament structure resists scuffing from vibration against metal edges, zip-tie saddles, and adjacent bundles — PVC tape shreds; cloth tape just shows surface fuzz.
• Conformability & Hand-Tear:​ Can be torn lengthwise/diagonally by hand (depending on weave tightness) for field use — wraps smoothly around irregular connectors and branch-outs without bridging gaps.
• Temperature Range:​ Acrylic-adhesive version rated −40°C to +125°C (some batches to 130°C short-term); rubber-adhesive version −20°C to +80°C — both far exceed cheap PVC's 60–70°C limit.
• Flame Retardancy (Optional):​ Saturated with halogen-free or low-halogen FR compound — self-extinguishes per UL 510/ GB/T 2408criteria (confirm per ordered grade).
• Noise Damping:​ Cloth + adhesive layer absorbs minor harness rattle inside door panels or dash — a small but valued NVH benefit in premium vehicles.

Key Specifications (From P112-193 Product Page)

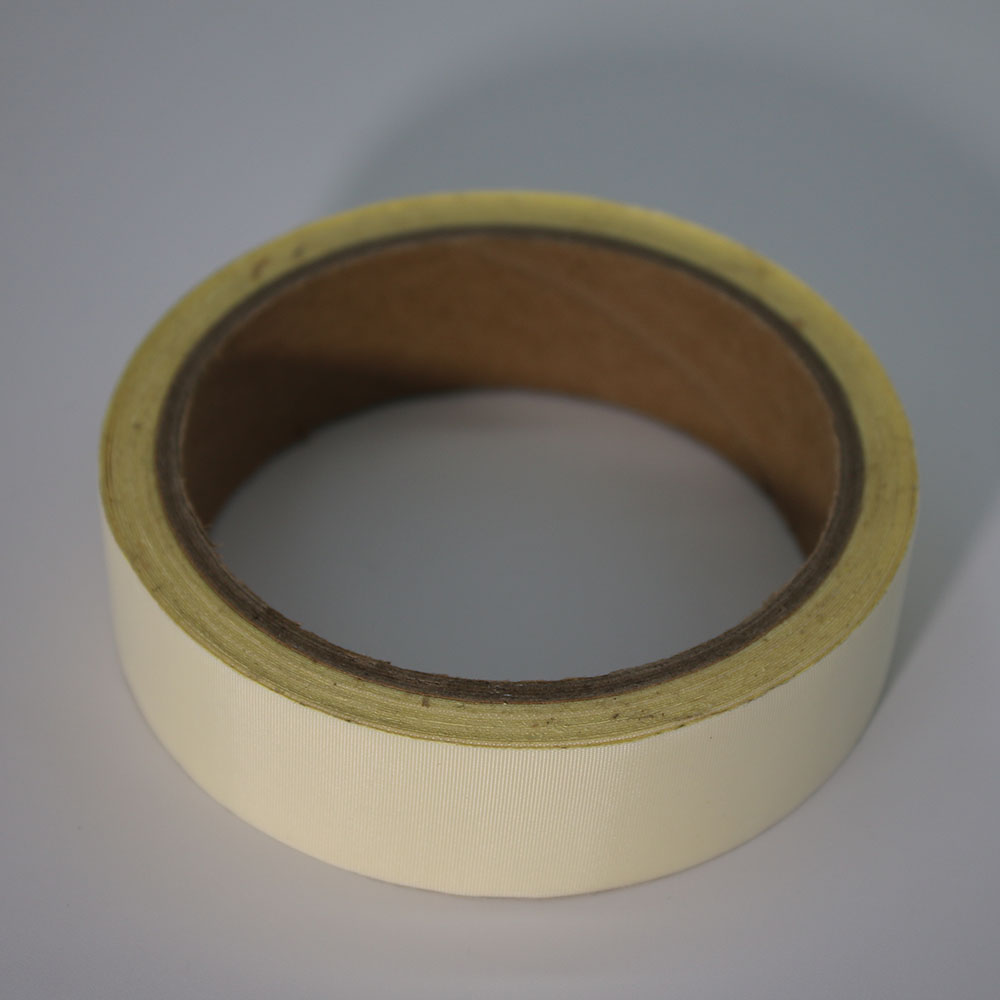

• Model:​ Nylon Cloth Tape - Model P112-193
• Base Fabric:​ Nylon woven cloth (polyamide filament plain weave); thickness 0.13–0.18 mm (fabric only)
• Total Thickness (With Adhesive / Foil):​ 0.20 mm / 0.25 mm / 0.30 mm / 0.35 mm typical (customizable)
• Adhesive Options:​
  • Acrylic (Solvent-Based):High tack, good aging/UV, suitable for under-hood (105–125°C rated).
  • Natural / Synthetic Rubber (Hot-Melt or Solvent):Instant grab on dirty/rough surfaces, lower temp range, good for indoor MRO.
• Structure Variants:​
  • Single-sided (standard)
  • Double-sided with PET release liner on reverse (for bonding/spacer use)
  • Aluminum foil laminated backside (dead-soft 0.02–0.03 mm foil) — adds EMI reflection & lateral heat spreading
• Flame Retardancy:​ Optional FR coating — self-extinguishing per UL 510/ GB/T 2408 (specify when quoting)
• Colour Options:​ Black, white, gray standard; fluorescent orange / yellow / green for safety marking; custom Pantone on MOQ
• Roll Format:​ Master width 1020 mm / 1220 mm; custom slit 5 mm–500 mm; length 20 m / 25 m / 50 m per roll; 3″ core standard
• Peel Adhesion (180°, SUS):​ ≥ 10 N/25 mm (acrylic); ≥ 12 N/25 mm (rubber) — typical values
• Elongation (Cloth Only):​ 15–30% (machine direction)
• Shelf Life:​ 6 months in original pkg @ 23°C, ≤ 65% RH
• Compliance (on request):​ RoHS, REACH, UL Recognized Component (FR grade)

Typical Application Scenarios

• Automotive Wire Harness Bundling & Branch Protection:​ Primary or secondary wrap on engine-bay looms, door-sill harnesses, trailer lighting harness — acrylic adhesive version resists under-hood heat-cycling.
• Electrical Cabinet / Panel Inner Wiring Tidy & Abraded Edge Guard:​ Wrap exposed conductor groups near sharp-edged DIN-rail terminals — cloth won't cut like thin PVC.
• Tool Handle / Pipe Wrench Grip Re-Wrap:​ Anti-slip cushioned grip — fluorescent colours aid quick ID in tool crib.
• Robotics / CNC Cable Carrier Bundling:​ Cloth flexes with continuous motion; abrasion-resistant outer ply extends carrier life vs. thin film tape.
• Safety / Phase Identification Marking:​ Fluorescent orange/yellow/green cloth tape on cables, conduit, or temporary guardrails — high visibility even in low light.
• EMI-Sensitive Small Harness Shield (Foil-Laminated Version):​ Wrap signal wires near switching PS or motor drives — foil layer tied to chassis ground provides modest common-mode shielding; not a replacement for full braid but useful supplement in space-constrained areas.

Adhesive Choice: Acrylic vs. Rubber — When to Use Which

Correct Application & Storage

1. Surface Prep:​ Wipe dust/oil — bond strength on oily cable jackets can drop 20–30% if not cleaned.
2. Overlap 50% Minimum on Critical Abraded Sections:​ Ensures full coverage over crimp-sleeves and connector boots.
3. Wrap Tension:​ Firm but not stretching the cloth — over-stretch can thin the adhesive layer and reduce hold.
4. Cold-Weather Application (Rubber-Adhesive Ver.):​ If applying below 10°C, warm tape/part slightly — rubber flow improves wet-out.
5. Storage:​ Keep rolls in original polybag; avoid > 6 months warehouse age — adhesive can cold-flow or liner release force drift.

Sourcing Checklist for B2B / OEM Buyers

1. ✅ Specify adhesive type​ — acrylic (under-hood) or rubber (MRO/shop).
2. ✅ Confirm total thickness & width​ — e.g., 0.25 mm × 19 mm slit, 25 m/roll.
3. ✅ State FR requirement​ — UL 510self-extinguishing? (yes/no) — affects saturant choice & cost.
4. ✅ Ask about foil lamination / double-sided option​ if needed for your application.
5. ✅ Request colour & private-label backing print​ if reselling under your brand.

Conclusion: Rugged Cloth Performance in a Factory-Direct Spec
