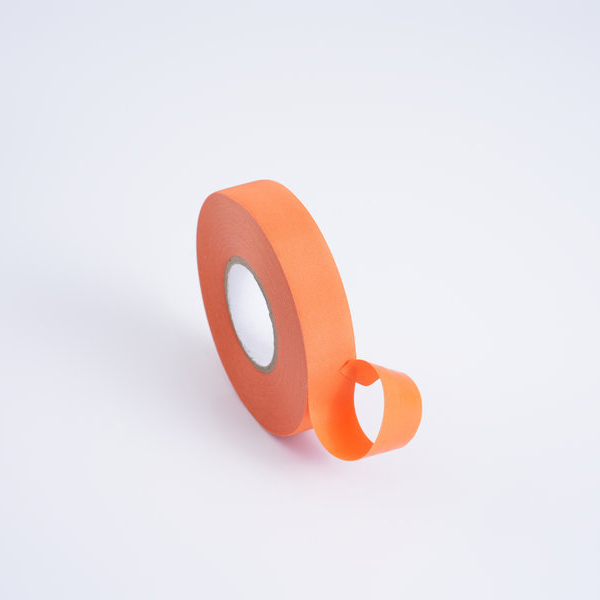

Will a Flame-Retardant Orange Fabric Wire Harness Tape Withstand 150 degrees Under the Hood Without Leaving Residue?
Update time : 2026-06-23
In engine bay wiring, the two things that destroy a standard vinyl electrical tape are heat and oil splash. Above 80–90°C, cheap PVC softens, the rubber adhesive liquefies, and you get a sticky, conductive mess that can attract debris and even compromise wire insulation. The High-Temperature Orange Automotive Wire Harness Tape — Woven Fabric Backing with Heat-Resistant Acrylic Adhesive, Flame Retardant, 150°C Rated, OEM Width / Print / Color Customizable (Yijiayi Onlyja®) is engineered specifically for this environment. It uses a temperature-stable woven fabric substrate and a high-performance acrylic adhesive that maintains bond integrity up to 150°C (short-term to 180°C on request), is flame-retardant per common automotive specs, and removes cleanly without oozing. But what performance characteristics separate a true high-temp harness tape from a hardware-store vinyl tape, and how should you specify it for OEM vs. aftermarket harness work?
Fabric Backing + Acrylic Adhesive: Why the Combination Matters
Unlike a homogeneous PVC film, this tape is a composite:
- Woven / Non-Woven Fabric Backing (Polyester-Cotton or PET-Polyester Fleece Variant):Provides abrasion resistance against sharp metal edges, flexibility to conform around tight bends, and a matt surface that resists glare. The weave structure also allows slight breathability, reducing moisture entrapment in humid climates.
- Heat-Resistant Acrylic Pressure-Sensitive Adhesive (PSA):Acrylic PSAs cross-link during coating and cure, giving them far superior temperature stability vs. natural or synthetic rubber adhesives. They do not "cold flow" excessively, resist UV and aging, and—critically—leave no gummy residue on wire jackets when later unwrapped for service or modification.
This combination yields a tape that survives the thermal cycling of an engine compartment while staying serviceable.
Key Technical Characteristics (From Product Page / Yijiayi Spec)
Property | Typical Value / Description |
|---|---|
Backing Material | Woven fabric (polyester blend / PET fleece type depending on grade) |
Adhesive | Acrylic, pressure-sensitive, heat-stable |
Temperature Resistance | Continuous use up to 150°C; customizable formula to 180°C short-term |
Flame Retardancy | Available with FR additive — meets common automotive flammability test requirements (e.g., FMVSS 302 / UL 94VTM-0 on request) |
Color | Orange (standard); black / gray / custom colors available |
Thickness | Usually 0.20–0.30 mm (8–12 mil) depending on backing weight |
Width Options | 9 mm / 19 mm / 25 mm / 38 mm standard; custom slitting 5–50 mm+ |
Elongation / Conformability | High — wraps tightly on Ø6 mm bundles and complex routing |
Hand-Tearable | Yes — no tools needed for on-line application |
Residue After Removal | Clean unwind; acrylic adhesive does not leave gummy transfer under normal service life |
OEM Customization | Width, length, color, printed logo/part number, adhesive type (acrylic/rubber/silicone), packaging |
Where This Tape Belongs in the Vehicle
✅ Engine Compartment & Powertrain Harnesses
Main and branch harnesses routed near exhaust manifolds, turbocharger oil lines, or radiator fans — anywhere ambient can reach 105–140°C during sustained operation.
✅ Battery & Starter Cable Bundling (ICE Vehicles)
Groups heavy-gauge cables neatly and adds a sacrificial abrasion layer where they pass through bulkheads or contact metal brackets.
✅ EV High-Voltage Sensor / Communication Looms (Secondary Bundling)
Outside the HV primary insulation — organizes low-voltage CAN/LIN/thermistor leads inside the orange HV loom; the orange color also visually signals "associated with HV system" to service techs.
✅ Aftermarket / Motorsport Harness Repair
Ideal for re-wrapping sections of loom that were cut during modification — orange color helps differentiate repaired zones during future diagnostics.
When Notto Use This Tape
Situation | Better Alternative |
|---|---|
Continuous exposure > 180°C (e.g., directly on exhaust header) | Specialty glass cloth + silicone adhesive tape |
Prolonged immersion in oil / fuel / brake fluid | Extruded convoluted tubing or braided sleeving (nylon / PET) |
Primary electrical insulation on exposed conductors | Use rated PVC/vinyl electrical tape or heat-shrink tubing — this tape is for mechanical protection & bundling of already-insulated wires |
Correct Application Technique
- Clean Wire Jacket Slightly — wipe dust/oil with isopropyl if accessible; most modern XLPE/PVC jackets bond well even without aggressive cleaning, but best practice = clean.
- Wrap with Light Tension — stretch tape ≈ 10–15% as you spiral; this activates adhesive and prevents loosening from thermal expansion/contraction.
- 50% Overlap Minimum — ensures full coverage and prevents gaps that could abrade.
- Anchor Ends — give an extra half-turn and press firmly; the acrylic adhesive will self-bond to the previous wrap layer.
- Mark Service Zones — if using orange for HV-associated bundles, note this in the service manual for technician awareness.
Sourcing Checklist for B2B / OEM Buyers
When requesting a quote for High-Temperature Orange Automotive Wire Harness Tape (150°C Flame-Retardant Fabric Tape):
- ✅ Confirm width(s) needed — e.g., 19 mm most common for general harness; 9 mm for sensor sub-loops.
- ✅ Specify color & print — orange standard; custom PMS match & logo print available.
- ✅ Request FR test report / certificate if required by your QA (FMVSS 302/ UL 94).
- ✅ Ask about minimum order & lead time — Yijiayi supports both trial qty and container-load OEM runs.
- ✅ Inquire about sample rolls for in-house line trial before committing volume.
Conclusion: Heat-Stable, Clean-Removing, Workshop-Friendly
The High-Temperature Orange Automotive Wire Harness Tape — Woven Fabric Backing with Heat-Resistant Acrylic Adhesive, Flame Retardant, 150°C Rated, OEM Customizable (Yijiayi Onlyja®) is purpose-built for under-hood and high-temp harness zones where vinyl tapes fail. Its fabric backing resists abrasion and conforms tightly; the acrylic adhesive holds through thermal cycles and removes cleanly; the orange color aids visual identification in complex looms. For automotive OEMs, Tier-1 harness makers, and professional auto-electricians, it is the correct specification to replace hardware-store vinyl in any engine bay or high-temp routing application.
RELATED NEWS
Read More >>

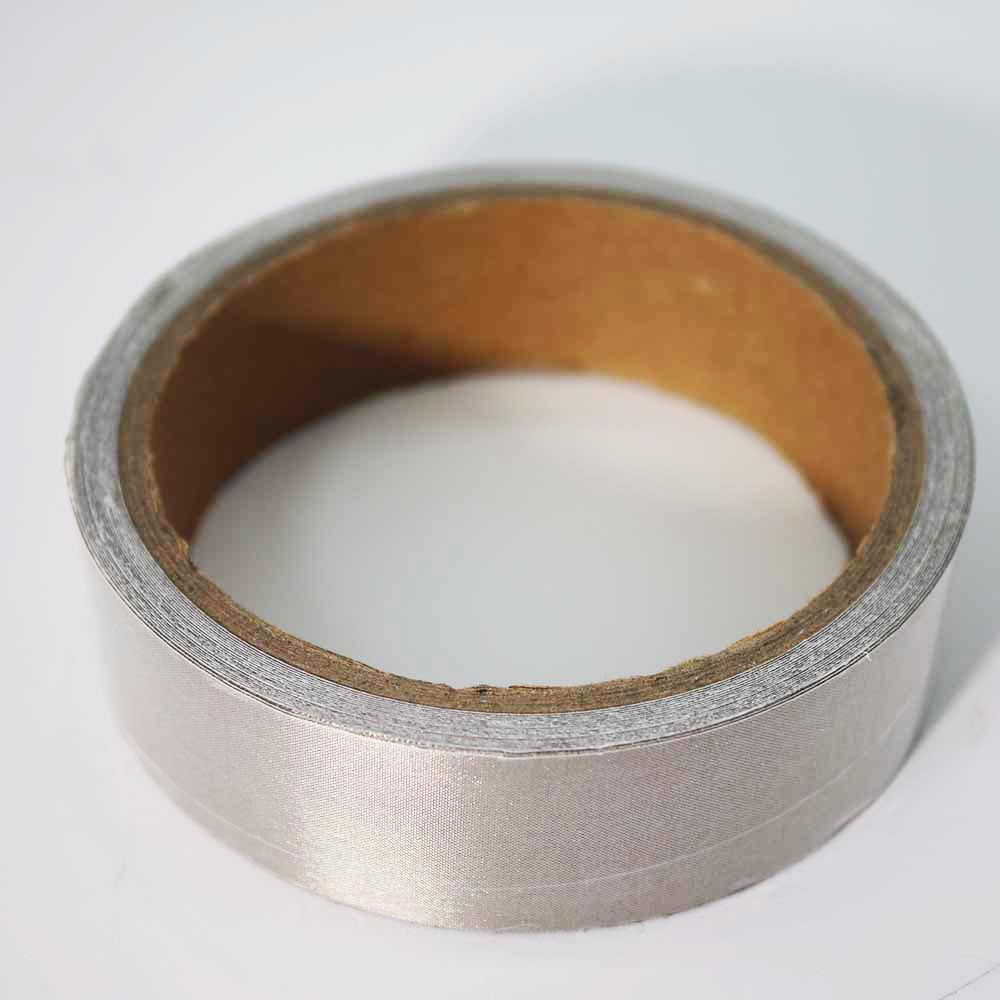

Does Double-Sided Conductive Fabric Tape Actually Replace Traditional EMI Gaskets in Compact Electronics?
